Attach a file to an asset

Within your site, you can add a number of different files to each individual asset. This capability allows you to track assets at a closer level and gives you the ability to store a number of files in one location. Here's how you link files to your assets:

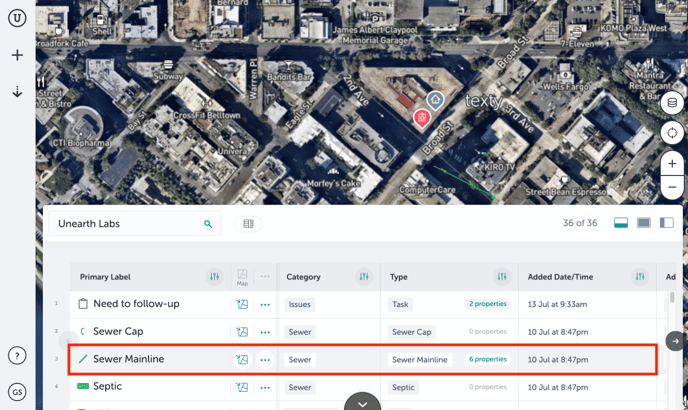

1. To attach a file to an asset, scroll through or search in Table View to locate the needed asset. Click on the asset.

Screen Shot 2020-07-13 at 10.16.37 AM

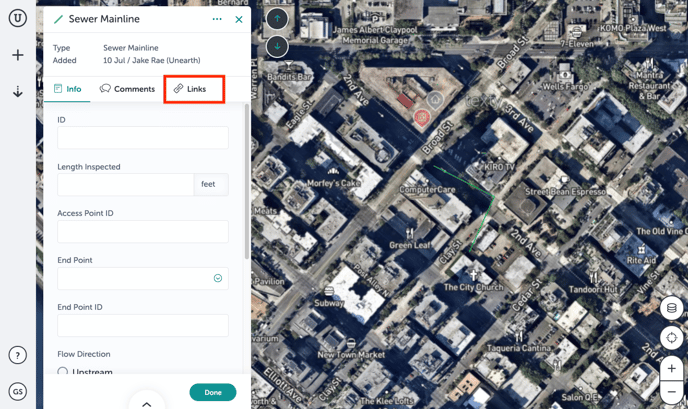

2. Click on the "Links" tab in the asset's field form.

Screen Shot 2020-07-13 at 10.16.51 AM

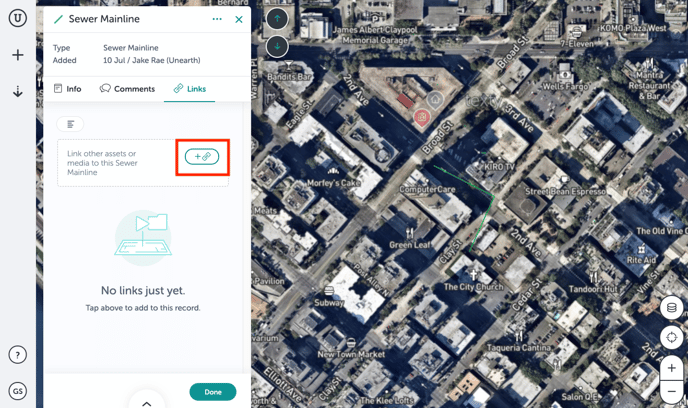

3. Next to the “Link other assets or media to this..” message, click on the button with the plus and paperclip.

Screen Shot 2020-07-13 at 10.17.02 AM

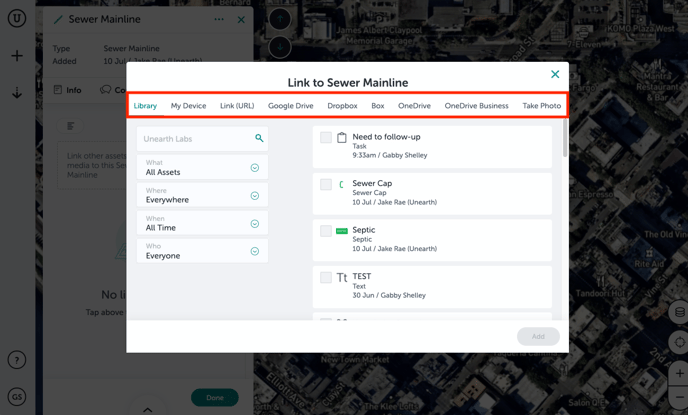

4. You can upload a file from a number of different source locations. Select what file you want in your site. Here, you can also link existing assets existing assets together for quick access to multiple assets across your site.

Screen Shot 2020-07-13 at 10.17.16 AM


5. The file will then appear in both the selected asset's field form under the "Links" tab and in Table View.

Screen Shot 2020-07-13 at 10.17.41 AM

Screen Shot 2020-07-13 at 10.18.00 AM

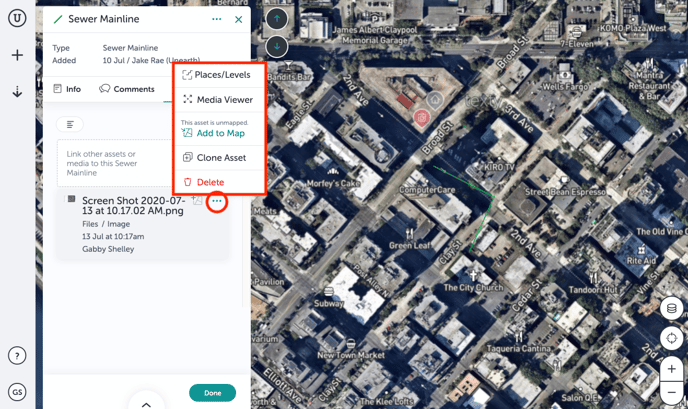

6. If you click on the three dots next to the file’s title in the "Links" tab, you have the option to add it to a plan layer, view the file on the fullscreen, add the file to the map, clone the file, or delete it.

Screen Shot 2020-07-13 at 10.42.16 AM


If you run into any issues or have any questions, please reach out to us at
